Home > Products > AC/DC Converters > Open Frame (2-150W)

Open Frame (2-150W)

Product Search >>
Part No. Image Power(W) Input Volt(Vac/dc) Output Volt(vdc) Isolation Volt(Vac/dc) Efficiency(%) Package Size(mm) Certificate/
Standards		 Datasheet
/3D		 Samples Request

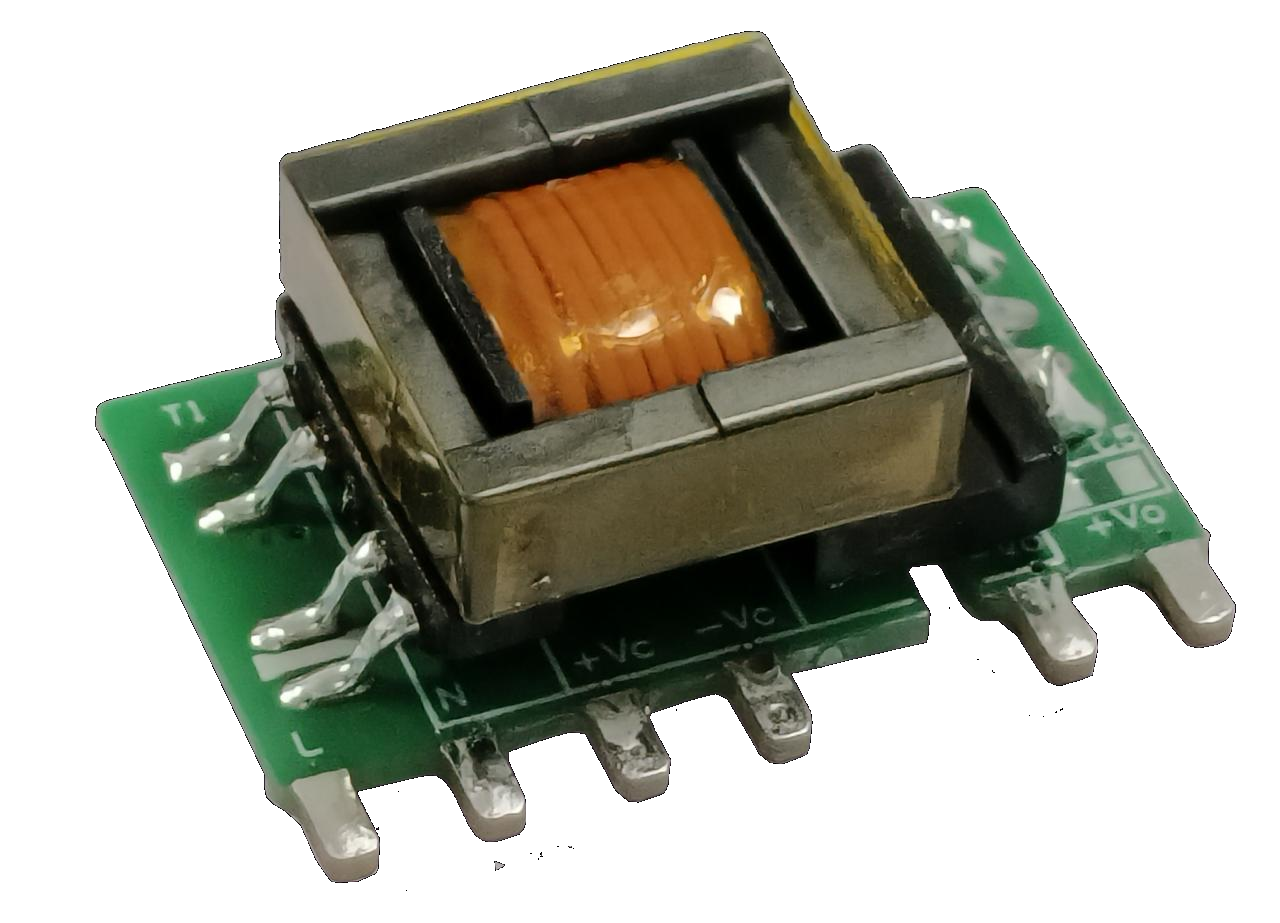

DA3-220SXXG9N3
85-305/120-430 3000/- 26.4*17.6*11.0
DA3-220S24G9N3 3 85-305/120-430 3000/- 82 26.4*17.6*11.0 -
DA3-220S15G9N3 3 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA3-220S12G9N3 3 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA3-220S09G9N3 3 85-305/120-430 3000/- 77 26.4*17.6*11.0 -
DA3-220S05G9N3 3 85-305/120-430 3000/- 72 26.4*17.6*11.0 -
DA3-220S3V3G9N3 2 85-305/120-430 3000/- 69 26.4*17.6*11.0 -

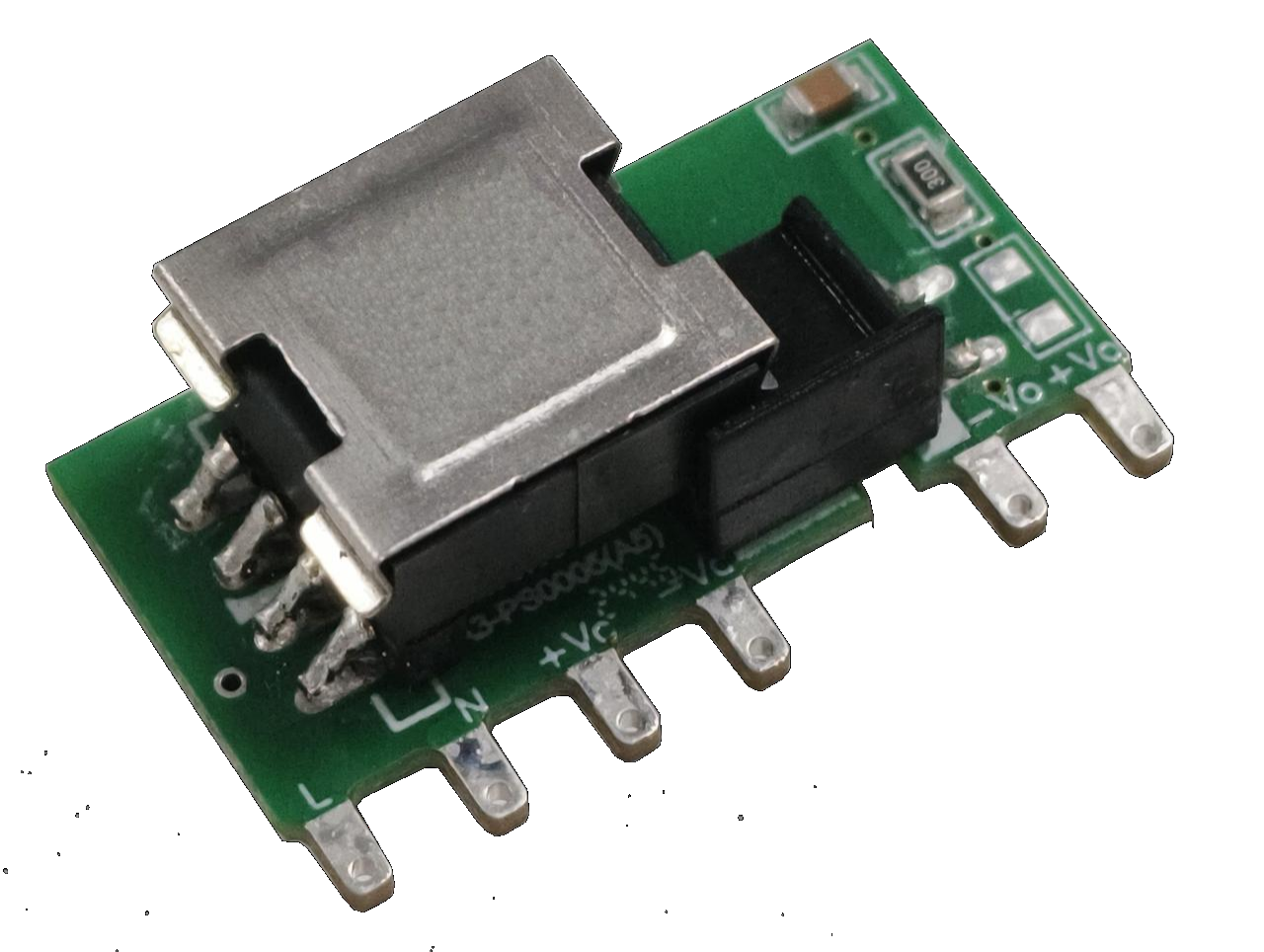

FA3-220SXXB9D4(-1)
85-265/120-380 3000/- 35.0*18.0*10.0
FA3-220S24B9D4(-1) 3 85-265/120-380 3000/- 77 35.0*18.0*10.0 -
FA3-220S15B9D4(-1) 3 85-265/120-380 3000/- 76 35.0*18.0*10.0 -
FA3-220S12V6B9D4(-1) 3 85-265/120-380 3000/- 76 35.0*18.0*10.0 -
FA3-220S12B9D4(-1) 3 85-265/120-380 3000/- 73 35.0*18.0*10.0 -
FA3-220S09B9D4(-1) 3 85-265/120-380 3000/- 73 35.0*18.0*10.0 -
FA3-220S05B9D4(-1) 3 85-265/120-380 3000/- 72 35.0*18.0*10.0 -
FA3-220S3V3B9D4(-1) 3 85-265/120-380 3000/- 68 35.0*18.0*10.0 -

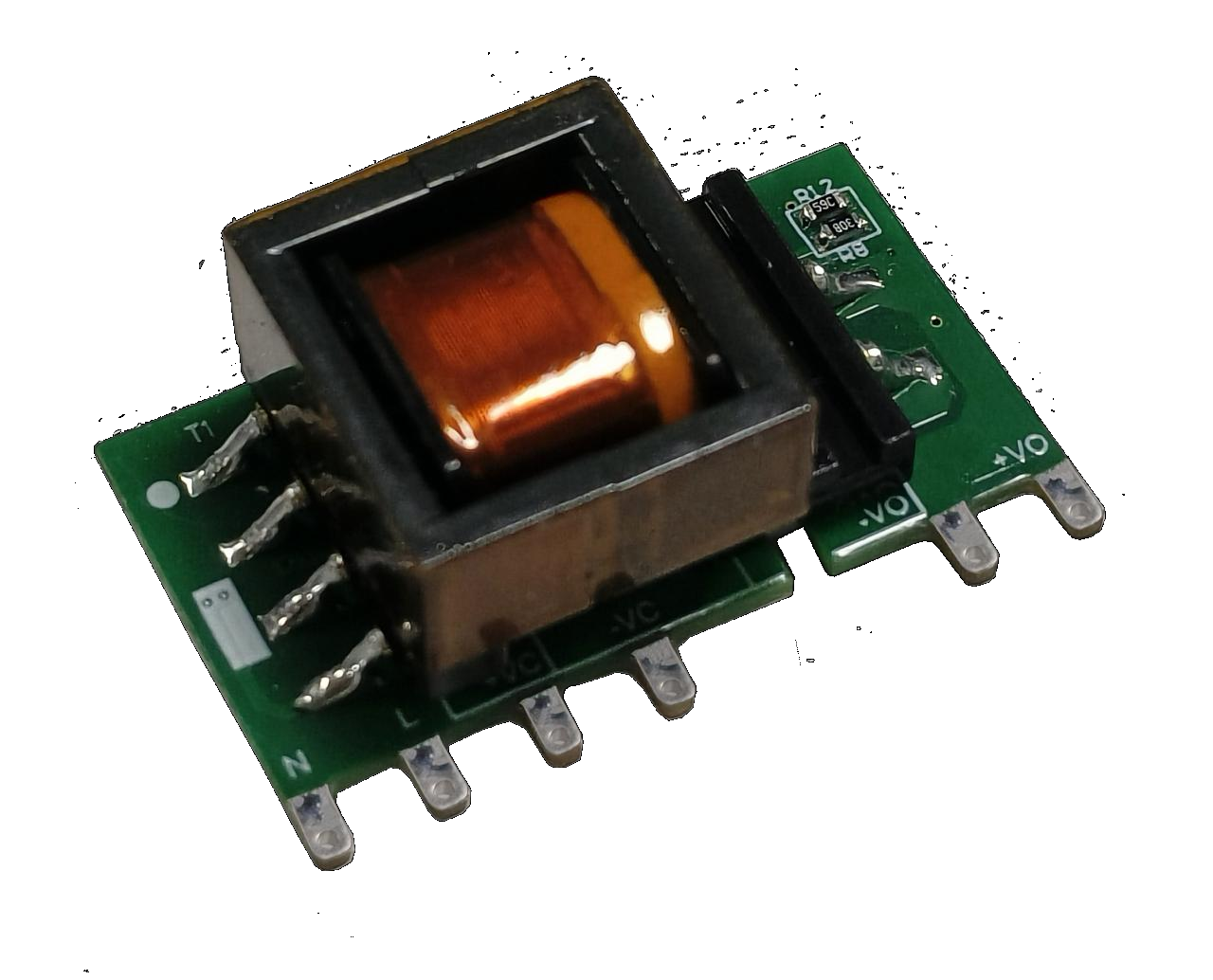

A03-C1SXXM
85-305/70-430 - 16.2*18.2*9.5
A03-C1S12M 3 85-305/70-430 - 73 16.2*18.2*9.5 -
A03-C1S05M 1 85-305/70-430 - 57 16.2*18.2*9.5 -
DA3-220SXXG9D4
85-305/70-430 3100/- 26.40 x 15.40 x 11.00
DA3-220S24G9D4 3 85-305/70-430 3100/- 76 26.40 x 15.40 x 11.00 -
DA3-220S15G9D4 3 85-305/70-430 3100/- 75 26.40 x 15.40 x 11.00 -
DA3-220S12G9D4 3 85-305/70-430 3100/- 75 26.40 x 15.40 x 11.00 -
DA3-220S09G9D4 3 85-305/70-430 3100/- - 26.40 x 15.40 x 11.00 -
DA3-220S05G9D4 3 85-305/70-430 3100/- 73 26.40 x 15.40 x 11.00 -
DA3-220S3V3G9D4 3 85-305/70-430 3100/- - 26.40 x 15.40 x 11.00 -
DA5-300SXXG9N4(-1)
85-528/120-746 4000/- 44.5*25.0*13.0
DA5-300S24G9N4(-1) 5 85-528/120-746 4000/- 80 44.5*25.0*13.0 -
DA5-300S15G9N4(-1) 5 85-528/120-746 4000/- 78 44.5*25.0*13.0 -
DA5-300S12G9N4(-1) 5 85-528/120-746 4000/- 78 44.5*25.0*13.0 -
DA5-300S05G9N4(-1) 5 85-528/120-746 4000/- 76 44.5*25.0*13.0 -
FA5-220SXXB9D4(-1)
90-265/127-380 3000/- 42.0*20.0*13.0
FA5-220S24B9D4(-1) 5 90-265/127-380 3000/- 82 42.0*20.0*13.0 -
FA5-220S15B9D4(-1) 5 90-265/127-380 3000/- 79 42.0*20.0*13.0 -
FA5-220S12B9D4(-1) 5 90-265/127-380 3000/- 79 42.0*20.0*13.0 -
FA5-220S09B9D4(-1) 5 90-265/127-380 3000/- 77 42.0*20.0*13.0 -
FA5-220S5V25B9D4(-1) 5 90-265/127-380 3000/- 72 42.0*20.0*13.0 -
FA5-220S05B9D4(-1) 5 90-265/127-380 3000/- 71 42.0*20.0*13.0 -
FA5-220S3V3B9D4(-1) 3 90-265/127-380 3000/- 67 42.0*20.0*13.0 -
DA5-220SXXG9D4
85-305/70-430 3600/- 26.4*17.5*12.0
DA10-220S24G9D4 10 85-305/120-430 3600/- 83 26.4*17.5*12.0 -
DA5-220S24G9D4 5 85-305/70-430 3600/- 80 26.4*17.5*12.0 -
DA5-220S15G9D4 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
DA5-220S12V1G9D4 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
DA5-220S12G9D4 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
DA5-220S09G9D4 5 85-305/70-430 3600/- 76 26.4*17.5*12.0 -
DA5-220S05G9D4 5 85-305/70-430 3600/- 74 26.4*17.5*12.0 -
DA5-220S3V3G9D4 3.3 85-305/70-430 3600/- 68 26.4*17.5*12.0 -
DA5-220EXXXXGA9N4
85-305/120-430 3600/- 26.4*17.6*11.0
DA5-220E0524GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0524GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0512GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0512GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-380SXXGA9N4
85-528/100-745 4000/- 33.5 X 20.0 X 13.5
DA5-380S24GA9N4 5 85-528/100-745 4000/- 80 33.5 X 20.0 X 13.5 -
DA5-380S15GA9N4 5 85-528/100-745 4000/- 78 33.5 X 20.0 X 13.5 -
DA5-380S12GA9N4 5 85-528/100-745 4000/- 78 33.5 X 20.0 X 13.5 -
DA5-380S05GA9N4 5 85-528/100-745 4000/- 71 33.5 X 20.0 X 13.5 -
DA10-300SXXG9N4
90-528/127-746 4000/- 45.0*22.0*16.0
DA10-300S24G9N4 10 90-528/127-746 4000/- 82 45.0*22.0*16.0 -
DA10-300S12G9N4 10 90-528/127-746 4000/- 81 45.0*22.0*16.0 -
DA10-300S05G9N4 10 90-528/127-746 4000/- 77 45.0*22.0*16.0 -
DA10-220SXXG9D4
85-305/120-430 3600/- 32.0 × 20.0 × 14.5 mm
DA10-220S24G9D4 10 85-305/120-430 3600/- 83 32.0 × 20.0 × 14.5 mm -
DA10-220S15G9D4 10 85-305/120-430 3600/- 82 32.0 × 20.0 × 14.5 mm -
DA10-220S12G9D4 10 85-305/120-430 3600/- 81 32.0 × 20.0 × 14.5 mm -
DA10-220S09G9D4 10 85-305/120-430 3600/- 78 32.0 × 20.0 × 14.5 mm -
DA10-220S05G9D4 10 85-305/120-430 3600/- 77 32.0 × 20.0 × 14.5 mm -
DA10-220S3V3G9D4 10 85-305/120-430 3600/- 73 32.0 × 20.0 × 14.5 mm -
DA10-220SXXG9N4
85-305/120-430 3600/- 28.84 x 20.0 x 14.0
DA10-220S24G9N4 10 85-305/120-430 3600/- 84 28.84 x 20.0 x 14.0 -
DA10-220S15G9N4 10 85-305/120-430 3600/- 82 28.84 x 20.0 x 14.0 -
DA10-220S12V5G9N4 10 85-305/120-430 3600/- 82 28.84 x 20.0 x 14.0 -
DA10-220S12G9N4 10 85-305/120-430 3600/- 82 28.84 x 20.0 x 14.0 -
DA10-220S09G9N4 10 85-305/120-430 3600/- 80 28.84 x 20.0 x 14.0 -
DA10-220S05G9N4 10 85-305/120-430 3600/- 78 28.84 x 20.0 x 14.0 -
DA10-220S3V3G9N4 10 85-305/120-430 3600/- 72 28.84 x 20.0 x 14.0 -
DA10-380SXXG9N4
85-528/100-745 4000/- 38 X 23 X 15
DA10-380S24G9N4 10 85-528/100-745 4000/- 83 38 X 23 X 15 -
DA10-380S12G9N4 10 85-528/100-745 4000/- 82 38 X 23 X 15 -
DA10-380S05G9N4 10 85-528/100-745 4000/- 77 38 X 23 X 15 -
FA15-220SXXB9N3(-1)
85-305/120-430 4000/- 45.0*23.0*15.0
FA15-220S24B9N3(-1) 15 85-305/120-430 4000/- 85 45.0*23.0*15.0 CE,ETL
FA15-220S12V7B9N3(-1) 15 85-305/120-430 4000/- 82 45.0*23.0*15.0 CE,ETL
FA15-220S12B9N3(-1) 15 85-305/120-430 4000/- 83 45.0*23.0*15.0 CE,ETL
FA15-220S05B9N3(-1) 15 85-305/120-430 4000/- 77 45.0*23.0*15.0 CE,ETL
FA15-220S3V3B9N3(-1) 10 85-305/120-430 4000/- 76 45.0*23.0*15.0 CE,ETL
FA15-380SXXG9N4
176-528/248-745 3600/- 40.04*20.0*15.0
FA15-380S24G9N4 15 176-528/248-745 3600/- 84 40.04*20.0*15.0 -
FA15-380S15G9N4 15 176-528/248-745 3600/- 83 40.04*20.0*15.0 -
FA15-380S12G9N4 15 176-528/248-745 3600/- 82 40.04*20.0*15.0 -
FA15-380S05G9N4 15 176-528/248-745 3600/- 81 40.04*20.0*15.0 -
DA20-220H051212G93
165-265/233-735 3000/- 70.0*48.0*22.0
DA20-220H051212G93 20 165-265/233-735 3000/- 83 70.0*48.0*22.0 -
DA20-220H051212G93 20 165-265/233-735 3000/- 83 70.0*48.0*22.0 -
DA48-220S24B
110-270/150-385 3000/- 81.9*43.0*25.0
DA48-220S24B 48 110-270/150-385 3000/- 87 81.9*43.0*25.0 -
DA60-220SXXG9N3
85-265/120-380 3000/- 83.0*48.0*27.0
DA60-220S48G9N3 60 85-265/120-380 3000/- 88 83.0*48.0*27.0 -
DA60-220S15G9N3 60 85-265/120-380 3000/- 86 83.0*48.0*27.0 -
DA60-220S12G9N3 60 85-265/120-380 3000/- 86 83.0*48.0*27.0 -
DA60-220SXXG9N4
85-265/120-380 4000/- 93.3*58.3*26.0
DA60-220S48G9N4 40 85-265/120-380 4000/- 87 93.3*58.3*26.0 -
DA60-220S24G9N4 60 85-265/120-380 4000/- 86 93.3*58.3*26.0 -
DA60-220S15G9N4 60 85-265/120-380 4000/- 85 93.3*58.3*26.0 -
DA60-220S12G9N4 60 85-265/120-380 4000/- 85 93.3*58.3*26.0 -
FA120-600SXXG9N4
85-900/- 4000/- 170.0*107.0*52.0
FA120-600S35G9N4 120 85-900/- 4000/- 90 170.0*107.0*52.0 -
FA120-600S28G9N4 120 85-900/- 4000/- 89 170.0*107.0*52.0 -
FA120-600S24G9N4 120 85-900/- 4000/- 89 170.0*107.0*52.0 -
DA150-220SXXG9N3
80-264/- 3000/- 105.0*60.0*31.0
DA150-220S48G9N3 144 80-264/- 3000/- 94 105.0*60.0*31.0 -
DA150-220S24G9N3 141.6 80-264/- 3000/- 94 105.0*60.0*31.0 -
DA150-220S12G9N3 140.4 80-264/- 3000/- 93 105.0*60.0*31.0 -
