Home > Products > DC/DC Converters > DIP Wide input (5-40W)

DIP Wide input (5-40W)

Product Search >>
Part No. Image Power(W) Input Volt(Vac/dc) Output Volt(vdc) Isolation Volt(Vac/dc) Efficiency(%) Package Size(mm) Certificate/
Standards		 Datasheet
/3D		 Samples Request
BK5-600SXXH1N4
-/200-1200 5,12,15,24 -/4000 68,75,76,78 70.0*48.0*23.5 -
DD6-05SXXE3C(N)2
-/4.5-9 5,12,15,24 -/1500 80,84 31.8*20.3*12.0 -
FD6-XXSXXA3N4
-/9-75 3.3,5,9,12,15,24 2150/- 82,84,85,86,87,88 25.4*25.4*12.5 -
FD6-XXSXXB2C5
-/9-75 3.3,5,9,12,15,24 -/5000 86,87,88,90 50.8*25.4*15.6 -
FK6-XXDXXE2C3
-/9-36 ±5,±9,±12,±15,±18,±24 -/3000 82,83,85 22.0*9.5*12.0 CE
FK6-XXSXXE2C3
-/9-75 3.3,5,9,12,15,24,48 -/3000 79,80,82,83,84,85,86,87 22.0*9.5*12.0 -,CE
PFD6-XXS&DXXE2(C)3
-/9-75 3.3,5,±5,9,±9,12,±12,15,±15,±18,24,25,±24 -/3000 77,80,82,83,84,85,86,87,88 31.6*20.3*10.2 -,CE
PFD6-XXSXXE2N6
-/9-75 5,6,9,12,15,18,24 -/6000 81,82,84,85,86 31.6*20.3*10.2 -,CE
FD6-110SXXA3N4
-/40 -160 3.3,5,9,15,24 2150/- 77,81,82,85,86 25.4*25.4*11.7 -

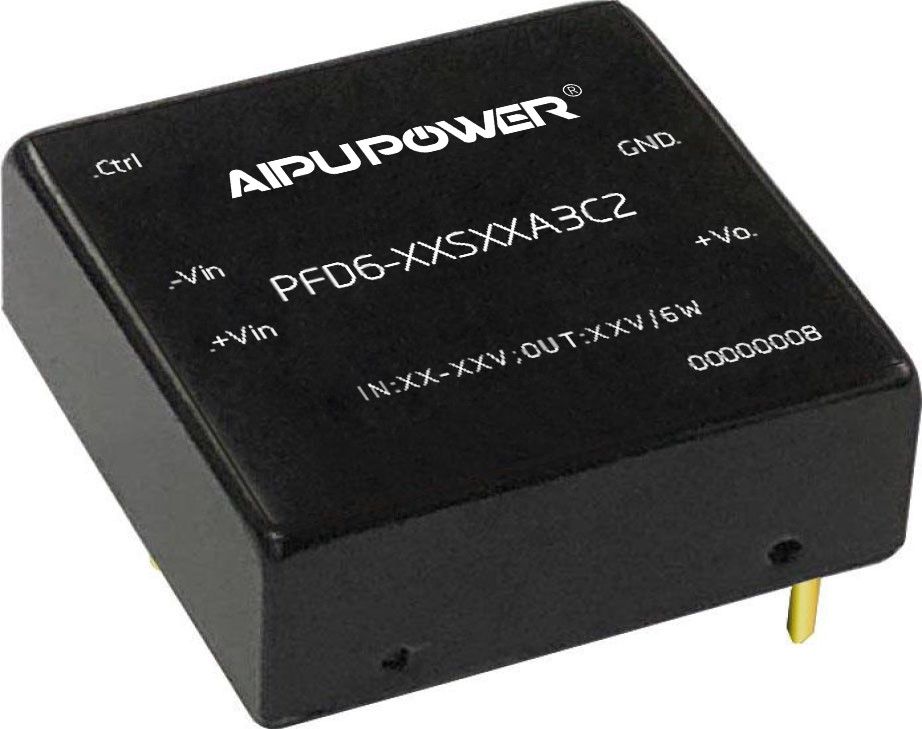

PFD6-XXS&DXXA3(C)2
-/9-75 3.3,5,±5,9,±9,12,±12,15,±15,±18,24,25,±24,40 1500/- 77,80,82,83,84,85,86,87,88 25.4X25.4X11.0 -
PFD6-110DXXA3(C)3
-/40 -160 ±15 -/2250 85 25.4*25.4*12.5 -
PFD6-36S24A3(C)2
-/18-75 1500/- 25.4X25.4X11.0
DD10-XXDXXE3(C)2
-/9-75 ±5,±12,±15 -/1500 83,86,87 31.8*20.3*12.0 -
DD10-XXSXXE3C2
-/9-75 3.3,5,12,15,24 -/1500 86,87,88 31.8*20.3*12.0 -
FK10-XXSXXE2C3
-/9-72 3.3,5,9,12,15,18,24 -/2250 84,87,88 22.0*9.5*12.0 CE,RoHS
FD12-110DXXB1C3
-/40 -160 ±3.3,±5,±9,±12,±15,±24 -/2250 84,86,87,88,89 50.8*25.4*11.2 -
FD12-110SXXA3(C)3
-/40 -160 3.3,5,5.2,9,12,15,24 1500/- 77,82,85,87,89 25.4*25.4*12.5 -
FD12-110SXXA3N4
-/40 -160 3.3,5,9,12,15,24 2100/- 80,82,85,87,89 25.4*25.4*12.5 -
FD12-XXSXXA3(C)2(-T)(-TS)
-/9-75 3.3,5,9,12,15,24 -/1500 78,81,83,85,86,87,88,89 25.4*25.4*11.0 -,CE,UL
FD12-XXSXXA3(C)4 (-T)(-TS)
-/9-75 3.3,5,9,12,15,24 2150/- 78,81,84,85,86,87 25.4*25.4*11.0 -
PDD12-XXEXXA3(C)2
-/9-36 5,7 -/1500 86 25.4*25.4*13.0 -
PFD12-XXDXXA3(C)2
-/9-75 ±5,±9,±12,±15,±24 -/1500 84,85,87,88 25.4*25.4*11.0 -
PFD12-XXSXXA3(C)2(-XXX)
-/9-75 3.3,5,5.1,5.5,6,9,12,15,17,20,24,48 -/1500 78,81,83,84,85,86,87,88,89 25.4*25.4*11.0 -
BK15-500SXXH1N4
-/100-1000 5,12,24 -/4000 82,83,84 70.0*48.0*23.5 -
BK15-500SXXH2N6(-T)(-TS)
-/100-1000 12,15,24 4000/- 82,85 70.0*48.0*23.5 -
BK15-600SXXH1N4
-/200-1200 5,12,15,24 -/4000 75,77,78,80 70.0*48.0*23.5 -
PFD15-XXSXXA3(C)2(-XXX)
-/9-75 3.3,4,5,9,12,12.2,15,24 -/1500 88,89,90,91 25.4*25.4*12.5 CE
PFD15-XXDXXA3(C)2(-XXX)
-/9-75 ±5,±9,±12,±15,±24 -/1500 86,87,88,89,90 25.4*25.4*12.5 -
BK15-800SXXW2N6(-T)(-TS)(-TS1)
-/200-1500 4000/- 134.0x69.0x34.0mm
DD20-XXSXXB3R3
-/9-75 3.3,5,9,12,15,18,24,28 -/3000 84,86,87,89,90 50.8*25.4*11.8 -
FD20-110SXXB3C5
-/40 -160 3.3,5,9,12,15,24,40 -/5000 85,87,88,89 50.8*25.4*13.0 -
FD20-XXSXXA3C4
-/9-75 3.3,5,9,12,15,24 2150/3000 88,90 25.4*25.4*12.5 -
FD20-XXSXXB1(C)2(-XXX)
-/9-36 3.3,5,9,12,15,18,24,28 -/1500 84,87,88,89 50.8*25.4*10.5 -
PFD20-110SXXA3R3
-/40 -160 3.3,5,9,12,15,24 1500/- 86,87,88,89 25.4*25.4*12.5 -
PFD20-XXDXXA3(C)2(-XXX)
-/9-75 ±5,±9,±12,±15,±24 -/1500 86,87,88,89,90 25.4*25.4*12.5 -,CE

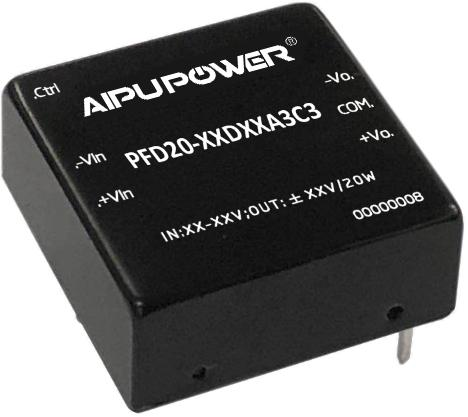

PFD20-XXDXXA3(C)3(-XXX)
-/9-36 ±5,±12,±15,±24 -/3000 86,87,88,89,90 25.4 X 25.4 X 12.5 -
PFD20-XXSXXB2(C)5
-/9-75 3.3,5,9,12,15,24 -/5000 85,86,88,89 50.8*25.4*15.6 -
FD20-110SXXB3C3(-XXX)
-/40 -160 3.3,5,9,12,15,24,40 1500/2250 86,88,89 50.8*25.4*13.0 -

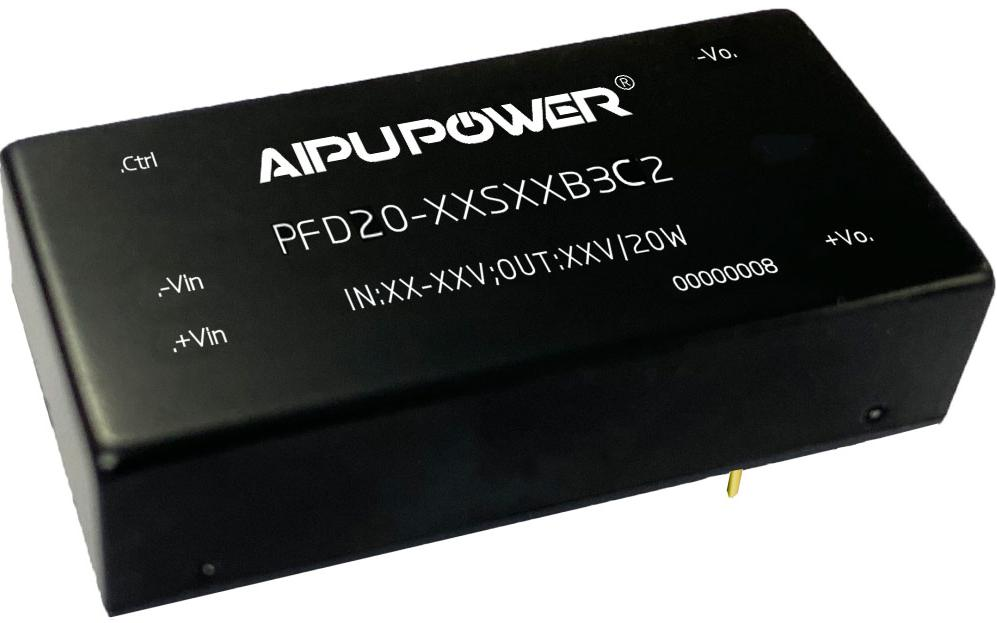

PFD20-XXSXXB3(C)2
-/9-75 3.3,5,9,12,15,24 -/1500 86,87,88,89,90 50.8*25.4*11.8 -

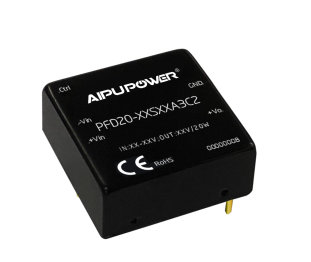

PFD20-XXSXXA3(C)2(-XXX)
-/9-75 3.3,5,9,12,15,18,24,28 1500/- 88,89,90,91 25.4X 25.4X12.5 CE
BK25-150S12H2N4
-/64-265 12 4000/- 87 70.0*48.0*23.5 -
BK25-170S12H2N4
-/45-300 12 -/4000 80 70.0*48.0*23.5 -
BK25-500SXXH1D4
-/100-1000 12,24 -/4000 85,86 70.0*48.0*23.5 -
BK25-500SXXH1N4
-/100-1000 12,15,24 -/4000 82,83,85 70.0*48.0*23.5 -
BK25-600DXXH1N4
-/200-1200 ±5,±12,±15,±24 -/4000 80,83,84,85 70.0*48.0*23.5 -
BK25-600SXXH1N4
-/200-1200 5,12,15,24 -/4000 80,82,83,84 70.0*48.0*23.5 -
FD30-XXDXXB3C3
-/9-75 ±3.3,±5,±9,±12,±15,±24 -/3000 86,88,89,90 50.8*25.4*13.3 -

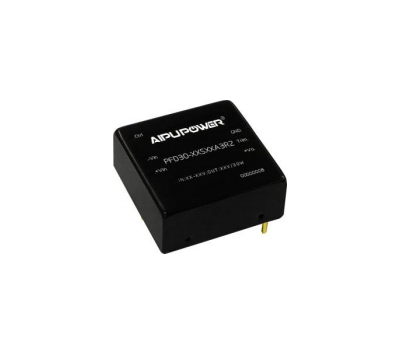

PFD30-XXSXXA3R2
-/9-75 3.3,5,6,9,12,15,24,48 -/1500 87,88,89,90,91 25.4*25.4*12.5 -
FD30-110SXXB3C3(-XXX)
-/40 -160 3.3,5,12,15,24,48 1500/3000 87,88,89 50.8*25.4*13.0 CE
FD30-XXSXXB3(C)(-XXX)
-/9-75 3.3,5,9,12,15,18,24 -/1500 87,88,89,90 50.8*25.4*9.5 CE,RoHS
BK40-600SXXW2N4
-/200-1200 12,15,24 -/4000 83,84,85 89.0*63.5*25.0 -
BK40-650SXXW2N4
-/200-1200 12,15,24 -/4000 83,84,85 134.0*70.0*42.0 -
BK40-850SXXG2N6
-/200-1500 12,24,28,35,37 4000/- 77,81,82,84,85 127.0*67.0*36.0 -

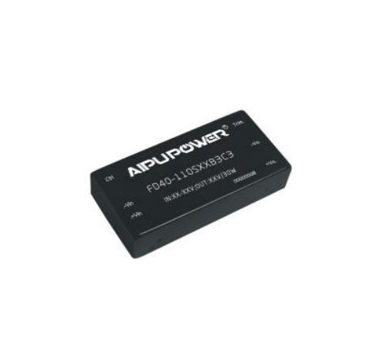

FD40-110SXXB3C3(-T)(-TS)
-/40 -160 3.3,5,12,15,24,48 1500/3000 88,89,90 50.8*25.4*13.0 CE

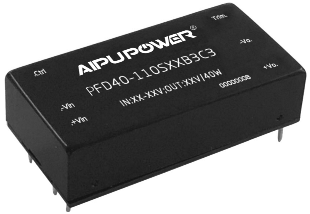

PFD40-110SXXB3C3(-XXX)
-/40 -160 3.3,5,15,24,48 1500/3000 88,89,90 50.8 X 25.4 X 11.8 -
BK40-600SXXW2N4-TS
-/200-1200 12,15,24 - 83,84,85 134.0*69.0*42.0 -
