Home > Products > AC/DC Converters > Encapsulated Module(40-200W)

Encapsulated Module(40-200W)

Product Search >>
Part No. Image Power(W) Input Volt(Vac/dc) Output Volt(vdc) Isolation Volt(Vac/dc) Efficiency(%) Package Size(mm) Certificate/
Standards		 Datasheet
/3D		 Samples Request
UA10-220SXXP2D(-T)(-TS)
90-265/127-380 3000/- 53.8*28.8*19.0
UA10-220S24P2D 10 90-265/127-380 3000/- 83 53.8*28.8*19.0 -
UA10-220S15P2D 10 90-265/127-380 3000/- 82 53.8*28.8*19.0 -
UA10-220S12V5P2D 10 90-265/127-380 3000/- 82 53.8*28.8*19.0 -
UA10-220S12P2D 10 90-265/127-380 3000/- 81 53.8*28.8*19.0 CE,RoHS
UA10-220S09P2D 10 90-265/127-380 3000/- 81 53.8*28.8*19.0 -
UA10-220S06P2D 10 90-265/127-380 3000/- 75 53.8*28.8*19.0 -
UA10-220S5V3P2D 10 90-265/127-380 3000/- 75 53.8*28.8*19.0 -
UA10-220S05P2D 10 90-265/127-380 3000/- 74 53.8*28.8*19.0 CE,RoHS
UA10-220S3V3P2D 10 90-265/127-380 3000/- 74 53.8*28.8*19.0 -
FA40-220SXXG2D5
85-305/120-430 4200/- 71.0*41.0*32.0
FA40-220S24G2D5 40 85-305/120-430 4200/- 88 71.0*41.0*32.0 -
FA40-220S15G2D5 40 85-305/120-430 4200/- 88 71.0*41.0*32.0 -

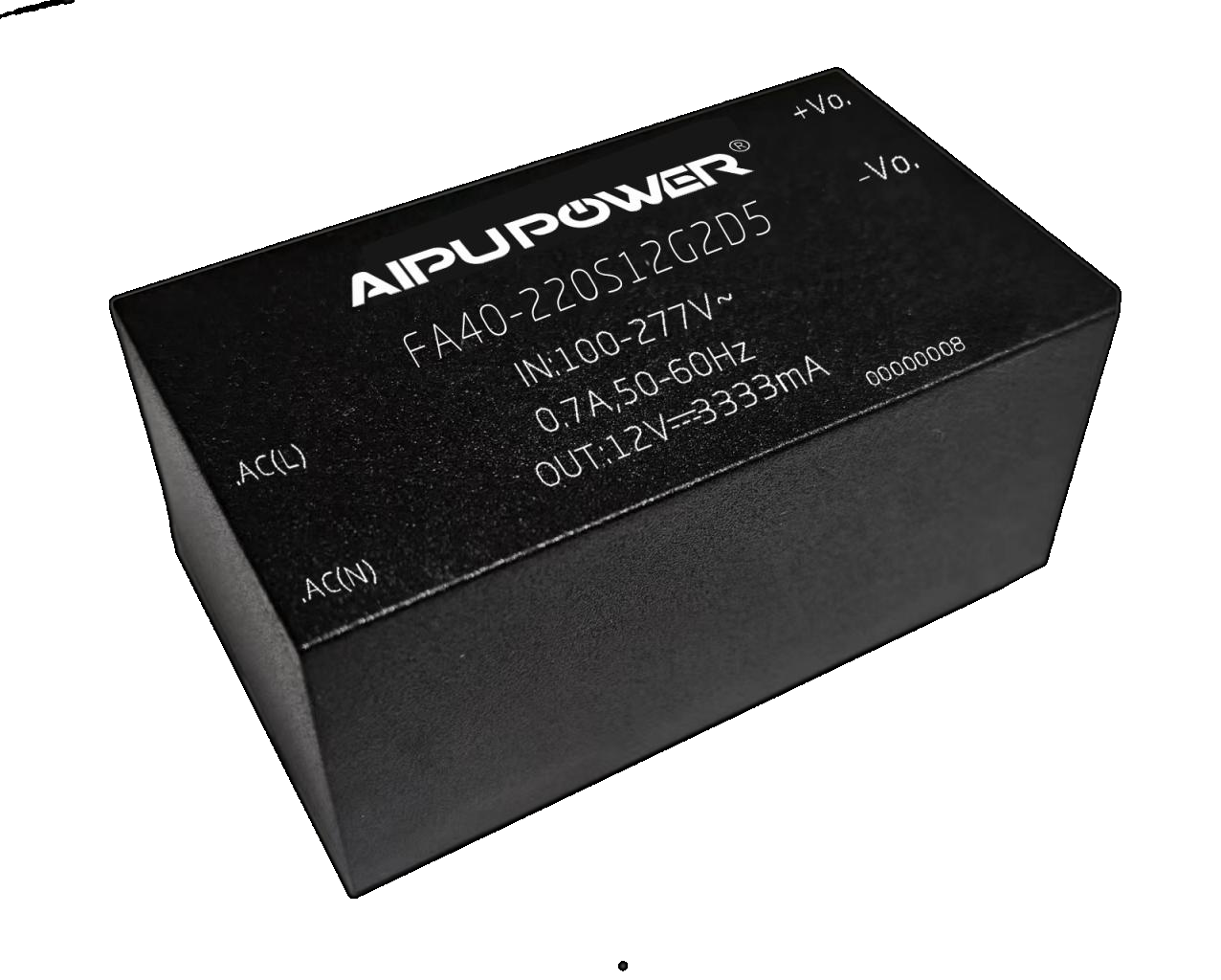

FA40-220S12G2D5 40 85-305/120-430 4200/- 88 71.0*41.0*32.0 -
FA40-220S05G2D5 40 85-305/120-430 4200/- 85 71.0*41.0*32.0 -
FA40-220SXXH3
85-265/120-380 3750/- 70.0*48.0*30.0
FA40-220S48H3 40 85-265/120-380 3750/- 88 70.0*48.0*30.0 -
FA40-220S24H3 40 85-265/120-380 3750/- 88 70.0*48.0*30.0 -
FA40-220S12V8H3 40 85-265/120-380 3750/- 86 70.0*48.0*30.0 -
FA40-220S12H3 40 85-265/120-380 3750/- 86 70.0*48.0*30.0 -
FA40-220S05H3 40 85-265/120-380 3750/- 82 70.0*48.0*30.0 -
FA40-220SXXH3N4(-T)(-TS)
85-265/120-380 3750/- 70.0*48.0*30.0
FA40-220S48H3N4 40 85-265/120-380 3750/- 87 70.0*48.0*30.0 -
FA40-220S24H3N4 40 85-265/120-380 3750/- 86 70.0*48.0*30.0 -
FA40-220S17V6H3N4 40 85-265/120-380 3750/- 85 70.0*48.0*30.0 -
FA40-220S17V5H3N4 40 85-265/120-380 3750/- 85 70.0*48.0*30.0 -
FA40-220S17H3N4 40 85-265/120-380 3750/- 85 70.0*48.0*30.0 -
FA40-220S12H3N4 40 85-265/120-380 3750/- 83 70.0*48.0*30.0 -
FA40-220S05H3N4 40 85-265/120-380 3750/- 82 70.0*48.0*30.0 -
FA40-220SXXW2D4
85-265/120-380 4000/- 89.0*63.5*25.0
FA40-220S24W2D4 40 85-265/120-380 4000/- 86 89.0*63.5*25.0 CE,RoHS
FA40-220S15W2D4 40 85-265/120-380 4000/- 84 89.0*63.5*25.0 -
FA40-220S12W2D4 40 85-265/120-380 4000/- 84 89.0*63.5*25.0 CE,RoHS
FA40-220S05W2D4 40 85-265/120-380 4000/- 79 89.0*63.5*25.0 CE,RoHS
FA40-220SXXW2N4
85-305/120-430 4000/- 89.0*63.5*25.0
FA40-220S24W2N4 40 85-305/120-430 4000/- 85 89.0*63.5*25.0 -
FA40-220S12W2N4 40 85-305/120-430 4000/- 83 89.0*63.5*25.0 -
FA40-220S05W2N4 40 85-305/120-430 4000/- 79 89.0*63.5*25.0 -
FA40-600SXXG2N4
85-900/- 4000/- 127.0*67.0*36.0
FA40-600S37G2N4 40 85-900/- 4000/- 89 127.0*67.0*36.0 -
FA40-600S35G2N4 40 85-900/- 4000/- 89 127.0*67.0*36.0 -
FA40-600S28G2N4 40 85-900/- 4000/- 88 127.0*67.0*36.0 -
FA40-600S24G2N4 40 85-900/- 4000/- 86 127.0*67.0*36.0 -
UA40-220S05
85-265/120-380 3000/- 70.0 x 48.0 x 23.5
FA40-220SXXG2N5
85-305/120-430 4200/- 69.5*39.0*25.5
FA40-220S24G2N5 40 85-305/120-430 4200/- 89 69.5*39.0*25.5 -
FA40-220S12G2N5 40 85-305/120-430 4200/- 89 69.5*39.0*25.5 -
FA50-500SXXG2D4
85-900/- 4000/- 127.0*67.0*36.0
FA50-500S37G2D4 50 85-900/- 4000/- 88 127.0*67.0*36.0 -
FA50-500S35G2D4 50 85-900/- 4000/- 88 127.0*67.0*36.0 -
FA50-500S28V5G2D4 50 85-900/- 4000/- 87 127.0*67.0*36.0 -
FA50-500S28G2D4 50 85-900/- 4000/- 87 127.0*67.0*36.0 -
FA50-500S24G2D4 50 85-900/- 4000/- 85 127.0*67.0*36.0 -
DA60-220SXXG2N3
85-265/120-380 4000/- 87.0*52.0*29.5
DA60-220S48G2N3 60 85-265/120-380 4000/- 88 87.0*52.0*29.5 -
DA60-220S15G2N3 60 85-265/120-380 4000/- 87 87.0*52.0*29.5 -
DA60-220S12G2N3 60 85-265/120-380 4000/- 86 87.0*52.0*29.5 -
FA60-220SXXH2N5
85-305/120-430 4200/- 70.0*48.0*27.0
FA60-220S15H2N5 60 85-305/120-430 4200/- 89 70.0*48.0*27.0 -
FA60-220S24H2N5 60 85-305/120-430 4200/- 89 70.0*48.0*27.0 -
FA60-220S12H2N5 60 85-305/120-430 4200/- 89 70.0*48.0*27.0 -
FA60-220S05H2N5 50 85-305/120-430 4200/- 87 70.0*48.0*27.0 -
FA60-220SXXG2N4
90-264/122-370 4000/- 109.00X58.50X30.00
FA60-220S36G2N4 60 90-264/122-370 4000/- 86 109.00X58.50X30.00 -
FA60-220S24G2N4 60 90-264/122-370 4000/- 86 109.00X58.50X30.00 -
FA60-220S12G2N4 60 90-264/122-370 4000/- 86 109.00X58.50X30.00 -
FA60-220S05G2N4 50 90-264/122-370 4000/- 82 109.00X58.50X30.00 -
FA90-220SXXG2N5
85-305/120-430 4200/- 87.0*52.0*29.5
FA90-220S24G2N5 90 85-305/120-430 4200/- 93 87.0*52.0*29.5 -
FA90-220S12G2N5 80.4 85-305/120-430 4200/- 92 87.0*52.0*29.5 -
NA200-M1
165-265/200-380 2500/- 139.0*88.0*23.5
NA200-220S48M1 200 165-265/200-380 2500/- 86 139.0*88.0*23.5 -
NA200-220S24M1 200 165-265/200-380 2500/- 86 139.0*88.0*23.5 -
NA200-220S15M1 200 165-265/200-380 2500/- 86 139.0*88.0*23.5 -
NA200-220S12M1 200 165-265/200-380 2500/- 86 139.0*88.0*23.5 -
