Home > Products > Brick Power Supply > 1/4 Brick

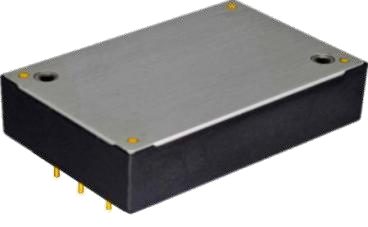

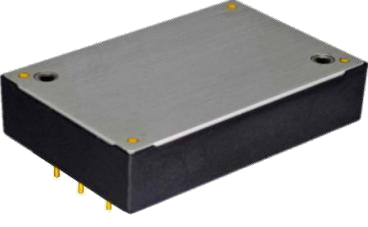

1/4 Brick

Product Search >>
Part No. Image Power(W) Input Volt(Vac/dc) Output Volt(vdc) Isolation Volt(Vac/dc) Efficiency(%) Package Size(mm) Certificate/
Standards		 Datasheet
/3D		 Samples Request
ZCD50-110S15
-/43-160 3000/- 60.4*39.0*12.7
ZCD50-110S15N-H 50 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD50-110S15C-H 50 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD50-110S15N 50 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD50-110S15C 50 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD50-110S15A
-/43-160 3000/- 60.4*39.0*12.7
ZCD50-110S24A
-/43-160 3000/- 60.4*39.0*12.7
ZCD60-110S12A
-/18-160 3000/- 60.4*39.0*12.7
ZCD60-110S12AN-H 60 -/18-160 3000/- 90 60.4*39.0*12.7 -
ZCD60-110S12AC-H 60 -/18-160 3000/- 90 60.4*39.0*12.7 -
ZCD60-110S12AN 60 -/18-160 3000/- 90 60.4*39.0*12.7 -
ZCD60-110S12AC 60 -/18-160 3000/- 90 60.4*39.0*12.7 -
ZCD75-48S05A
-/18-75 -/1500 60.4*39.0*12,7
ZCD75-48S05AN-H 75 -/18-75 -/1500 90 60.4*39.0*12,7 -
ZCD75-48S05AC-H 75 -/18-75 -/1500 90 60.4*39.0*12,7 -
ZCD75-48S05AN 75 -/18-75 -/1500 90 60.4*39.0*12,7 -
ZCD75-48S05AC 75 -/18-75 -/1500 90 60.4*39.0*12,7 -
ZCD75-48S12
-/18-75 -/1500 60.4*39.0*12.7
ZCD75-48S12N-H 75 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD75-48S12C-H 75 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD75-48S12N 75 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD75-48S12C 75 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD75-110S05A
-/43-160 3000/- 60.4*39.0*12.7
ZCD75-110S05AN-H 75 -/43-160 3000/- 89 60.4*39.0*12.7 -
ZCD75-110S05AC-H 75 -/43-160 3000/- 89 60.4*39.0*12.7 -
ZCD75-110S05AN 75 -/43-160 3000/- 89 60.4*39.0*12.7 -
ZCD75-110S05AC 75 -/43-160 3000/- 89 60.4*39.0*12.7 -
ZCD75-48S12A
-/18-75 -/2100 60.4*39.0*12.7
ZCD75-48S12AN-H 75 -/18-75 -/2100 92 60.4*39.0*12.7 -
ZCD75-48S12AC-H 75 -/18-75 -/2100 92 60.4*39.0*12.7 -
ZCD75-48S12AN 75 -/18-75 -/2100 92 60.4*39.0*12.7 -
ZCD75-48S12AC 75 -/18-75 -/2100 92 60.4*39.0*12.7 -
ZCD75-48S24A
-/18-75 -/1500 60.4*39.0*12.7
ZCD75-48S24AN-H 75 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD75-48S24AC-H 75 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD75-48S24AN 75 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD75-48S24AC 75 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD100-24S05A
-/9-36 -/1500 60.4*39.0*12.7
ZCD100-24S05AN-H 100 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD100-24S05AC-H 100 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD100-24S05AN 100 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD100-24S05AC 100 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD100-48S05A
-/18-75 -/1500 60.4*39.0*12.7
ZCD100-48S05AN-H 100 -/18-75 -/1500 88 60.4*39.0*12.7 -
ZCD100-48S05AC-H 100 -/18-75 -/1500 88 60.4*39.0*12.7 -
ZCD100-48S05AN 100 -/18-75 -/1500 88 60.4*39.0*12.7 -
ZCD100-48S05AC 100 -/18-75 -/1500 88 60.4*39.0*12.7 -
ZCD100-110S05A
-/43-160 -/3000 60.4*39.0*12.7
ZCD100-110S05AN-H 100 -/43-160 -/3000 89 60.4*39.0*12.7 -
ZCD100-110S05AC-H 100 -/43-160 -/3000 89 60.4*39.0*12.7 -
ZCD100-110S05AN 100 -/43-160 -/3000 89 60.4*39.0*12.7 -
ZCD100-110S05AC 100 -/43-160 -/3000 89 60.4*39.0*12.7 -
ZCD100-110S12A
-/43-160 3000/- 60.4*39.0*12.7
ZCD100-110S12AN-H 100 -/43-160 -/3000 90 60.4*39.0*12.7 -
ZCD100-110S12AC-H 100 -/43-160 -/3000 90 60.4*39.0*12.7 -
ZCD100-110S12AN 100 -/43-160 -/3000 90 60.4*39.0*12.7 -
ZCD100-110S12AC 100 -/43-160 -/3000 90 60.4*39.0*12.7 -
ZCD100-110S24A
-/43-160 -/1500 60.4*39.0*12.7
ZCD100-110S24AN-H 100 -/43-160 -/1500 90 60.4*39.0*12.7 -
ZCD100-110S24AC-H 100 -/43-160 -/1500 90 60.4*39.0*12.7 -
ZCD100-110S24AN 100 -/43-160 -/1500 90 60.4*39.0*12.7 -
ZCD100-110S24AC 100 -/43-160 -/1500 90 60.4*39.0*12.7 -
ZCD120-24S12A
-/9-36 -/2100 60.4*39.0*12.7
ZCD150-24S12A
-/9-36 -/1500 60.4*39.0*12.7
ZCD150-24S12AN-H 150 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD150-24S12AC-H 150 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD150-24S12AN 150 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD150-24S12AC 150 -/9-36 -/1500 88 60.4*39.0*12.7 -
ZCD150-24S24A
-/9-36 -/1500 60.4*39.0*12.7
ZCD150-24S24AN-H 150 -/9-36 -/1500 90 60.4*39.0*12.7 -
ZCD150-24S24AC-H 150 -/9-36 -/1500 90 60.4*39.0*12.7 -
ZCD150-24S24AN 150 -/9-36 -/1500 90 60.4*39.0*12.7 -
ZCD150-24S24AC 150 -/9-36 -/1500 90 60.4*39.0*12.7 -
ZCD150-24S28
-/18-36 -/1500 60.4*39.0*12.7
ZCD150-24S28N-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S28C-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S28N 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S28C 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S36
-/18-36 -/1500 60.4*39.0*12.7
ZCD150-24S36N-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S36C-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S36N 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S36C 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S48
-/18-36 -/1500 60.4*39.0*12.7
ZCD150-24S48N-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S48C-H 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S48N 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-24S48C 150 -/18-36 -/1500 91 60.4*39.0*12.7 -
ZCD150-48S12
-/18-75 -/1500 60.4*39.0*12.7
ZCD150-48S12N-H 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S12C-H 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S12N 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S12C 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S15
-/36-75 -/1500 60.4*39.0*12.7
ZCD150-48S15N-H 150 -/36-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S15C-H 150 -/36-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S15N 150 -/36-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S15C 150 -/36-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S28A
-/18-75 -/2100 60.4*39.0*12.7
ZCD150-48S48
-/18-75 -/1500 60.4*39.0*12.7
ZCD150-48S48N-H 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S48C-H 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S48N 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-48S48C 150 -/18-75 -/1500 90 60.4*39.0*12.7 -
ZCD150-110S24A
-/43-160 3000/- 60.4*39.0*12.7
ZCD150-110S24AN-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S24AC-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S24AN 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S24AC 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S28A
-/43-160 3000/- 60.4*39.0*12.7
ZCD150-110S28AN-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S28AC-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S28AN 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S28AC 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48
-/66-160 3000/- 60.4*39.0*12.7
ZCD150-110S48N-H 150 -/66-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48C-H 150 -/66-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48N 150 -/66-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48C 150 -/66-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48A
-/43-160 3000/- 60.4*39.0*12.7
ZCD150-110S48AN-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48AC-H 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48AN 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-110S48AC 150 -/43-160 3000/- 91 60.4*39.0*12.7 -
ZCD150-48S24A
-/18-75 -/2100 60.4*39.0*12.7
ZCD150-48S36A
-/18-75 -/1500 60.4*39.0*12.7
ZCD150-48S36AN-H 150 -/18-75 -/1500 89 60.4*39.0*12.7 -
ZCD150-48S36AC-H 150 -/18-75 -/1500 89 60.4*39.0*12.7 -
ZCD150-48S36AN 150 -/18-75 -/1500 89 60.4*39.0*12.7 -
ZCD150-48S36AC 150 -/18-75 -/1500 89 60.4*39.0*12.7 -
ZCD150-110S12A
-/43-160 3000/- 60.4*39.0*12.7
ZCD150-110S12AN-H 150 -/43-160 3000/- 90 60.4*39.0*12.7 -
ZCD150-110S12AC-H 150 -/43-160 3000/- 90 60.4*39.0*12.7 -
ZCD150-110S12AN 150 -/43-160 3000/- 90 60.4*39.0*12.7 -
ZCD150-110S12AC 150 -/43-160 3000/- 90 60.4*39.0*12.7 -
ZCD150-48S12A
-/18-75 -/2100 60.4*39.0*12.7
ZCD150-48S12AN-H 150 -/18-75 -/2100 91 60.4*39.0*12.7 -
ZCD150-48S12AC-H 150 -/18-75 -/2100 91 60.4*39.0*12.7 -
ZCD150-48S12AN 150 -/18-75 -/2100 91 60.4*39.0*12.7 -
ZCD150-48S12AC 150 -/18-75 -/2100 91 60.4*39.0*12.7 -
ZCD150-24S15A
-/9-36 -/2100 60.4*39.0*12.7
ZCD200-110S24
-/66-160 3000/- 60.4*39.0*12.7
ZCD200-110S24N-H 200 -/66-160 3000/- 90 60.4*39.0*12.7 -
ZCD200-110S24C-H 200 -/66-160 3000/- 90 60.4*39.0*12.7 -
ZCD200-110S24N 200 -/66-160 3000/- 90 60.4*39.0*12.7 -
ZCD200-110S24C 200 -/66-160 3000/- 90 60.4*39.0*12.7 -
ZCD200-280S12
-/180-425 2500/- 60.4*39.0*12.7
ZCD200-280S12N-H 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S12C-H 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S12N 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S12C 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S15
-/180-425 2500/- 60.4*39.0*12.7
ZCD200-280S15N-H 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S15C-H 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S15N 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD200-280S15C 200 -/180-425 2500/- 89 60.4*39.0*12.7 -
ZCD250-48S24
-/36-75 -/1500 60.4*39.0*12.7
ZCD250-48S24N-H 250 -/36-75 -/1500 91 60.4*39.0*12.7 -
ZCD250-48S24C-H 250 -/36-75 -/1500 91 60.4*39.0*12.7 -
ZCD250-48S24N 250 -/36-75 -/1500 91 60.4*39.0*12.7 -
ZCD250-48S24C 250 -/36-75 -/1500 91 60.4*39.0*12.7 -
ZCD250-280S24
-/180-425 2500/- 60.4*39.0*12.7
ZCD250-280S24N-H 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S24C-H 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S24N 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S24C 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S28
-/180-425 2500/- 60.4*39.0*12.7
ZCD250-280S28N-H 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S28C-H 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S28N 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S28C 250 -/180-425 2500/- 90 60.4*39.0*12.7 -
ZCD250-280S48
-/180-425 2500/- 61.0*39.0*12.7
ZCD250-280S48N-H 250 -/180-425 2500/- 90 61.0*39.0*12.7 -
ZCD250-280S48C-H 250 -/180-425 2500/- 90 61.0*39.0*12.7 -
ZCD250-280S48N 250 -/180-425 2500/- 90 61.0*39.0*12.7 -
ZCD250-280S48C 250 -/180-425 2500/- 90 61.0*39.0*12.7 -
ZCD300-48S12A
-/18-75 -/1500 60.4*39.0*12.7
ZCD200-48S12AN-H 300 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD200-48S12AC-H 300 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD300-48S12AN 300 -/18-75 -/1500 91 60.4*39.0*12.7 -
ZCD300-48S12AC 300 -/18-75 -/1500 91 60.4*39.0*12.7 -
