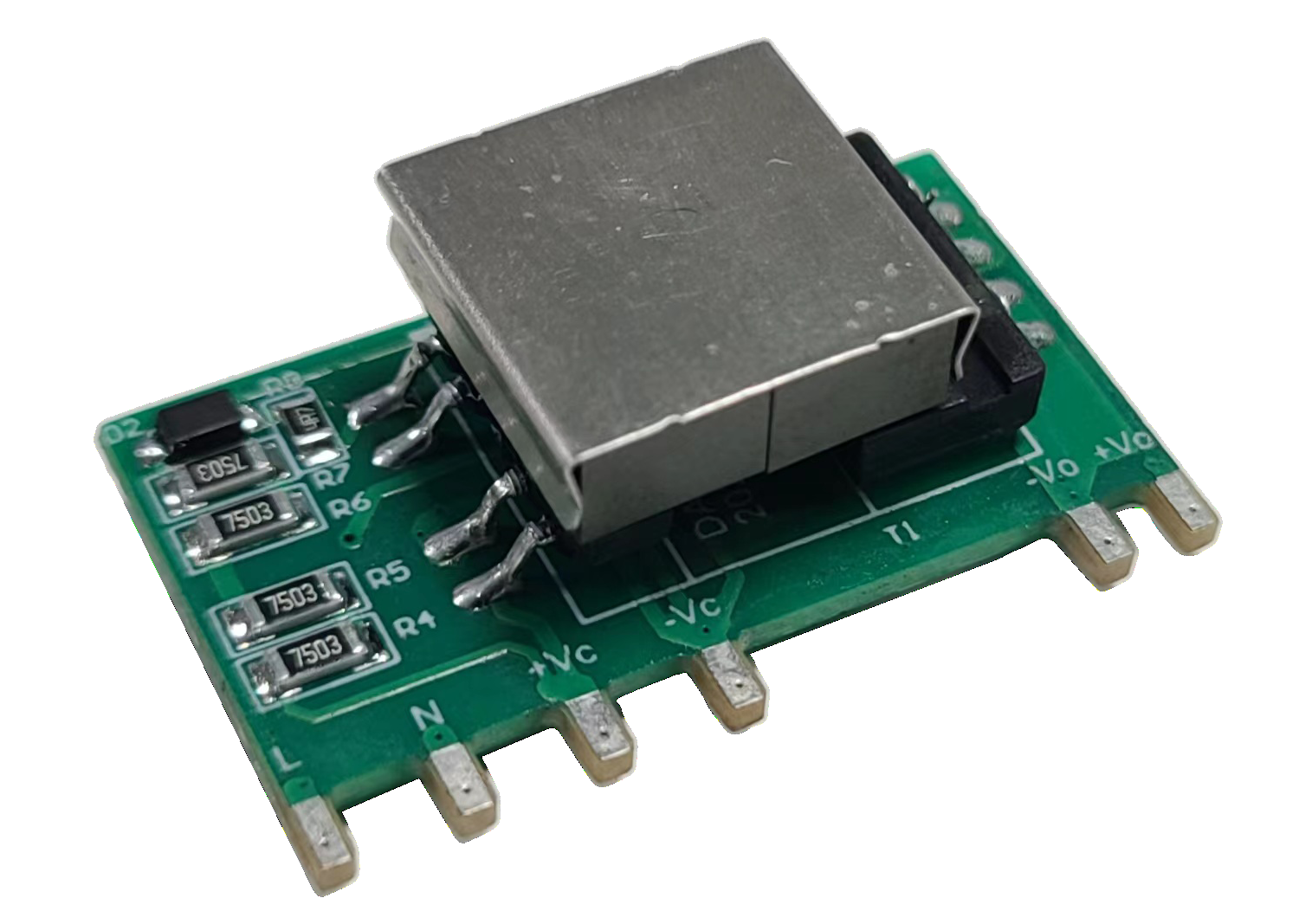

DA5-380S05GA9N4
• power: 5 W
• input voltage : /
• output voltage :
• efficiency:
• size:
• input voltage : /
• output voltage :
• efficiency:
• size:
Typical Features
◆ Wide input voltage range 85-528VAC/100-745VDC
◆ No load power consumption ≤0.65W@230VAC
◆ Efficiency 78%(Typ.) @230VAC
◆ Operating temperature from -40°C to +85°C
◆ Switching Frequency 65KHz (Typ.)
◆ Short circuit & over-current protections
◆ Isolation voltage 4000VAC
◆ Altitude during operation 4000m Max
◆ PCB SIP mounting
